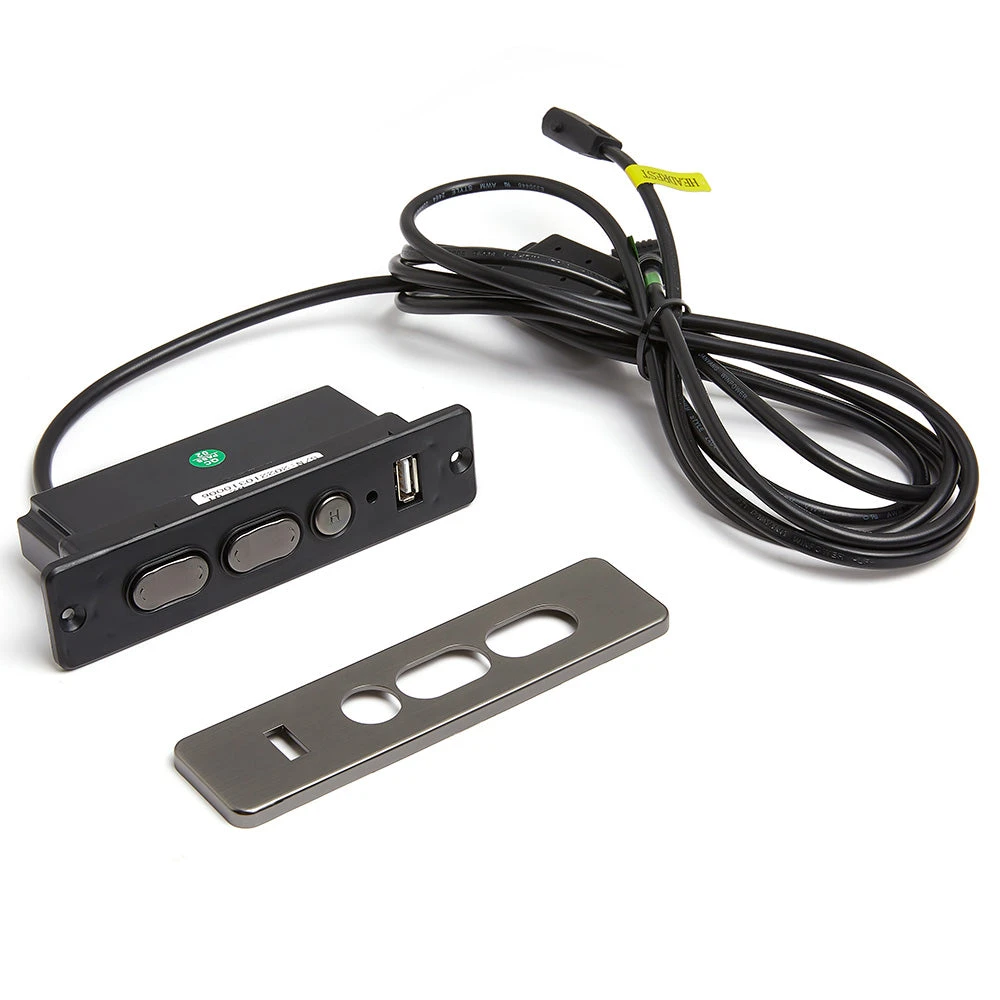

WPS5C10W-005 23300047X000 5 Button Switch For Recliner Lift Chair

This is the WPS5C10W-005 23300047X000 switch, it has 5 buttons, suitable for power recliner/lift chair with 2 linear actuator motors (up/down motors).

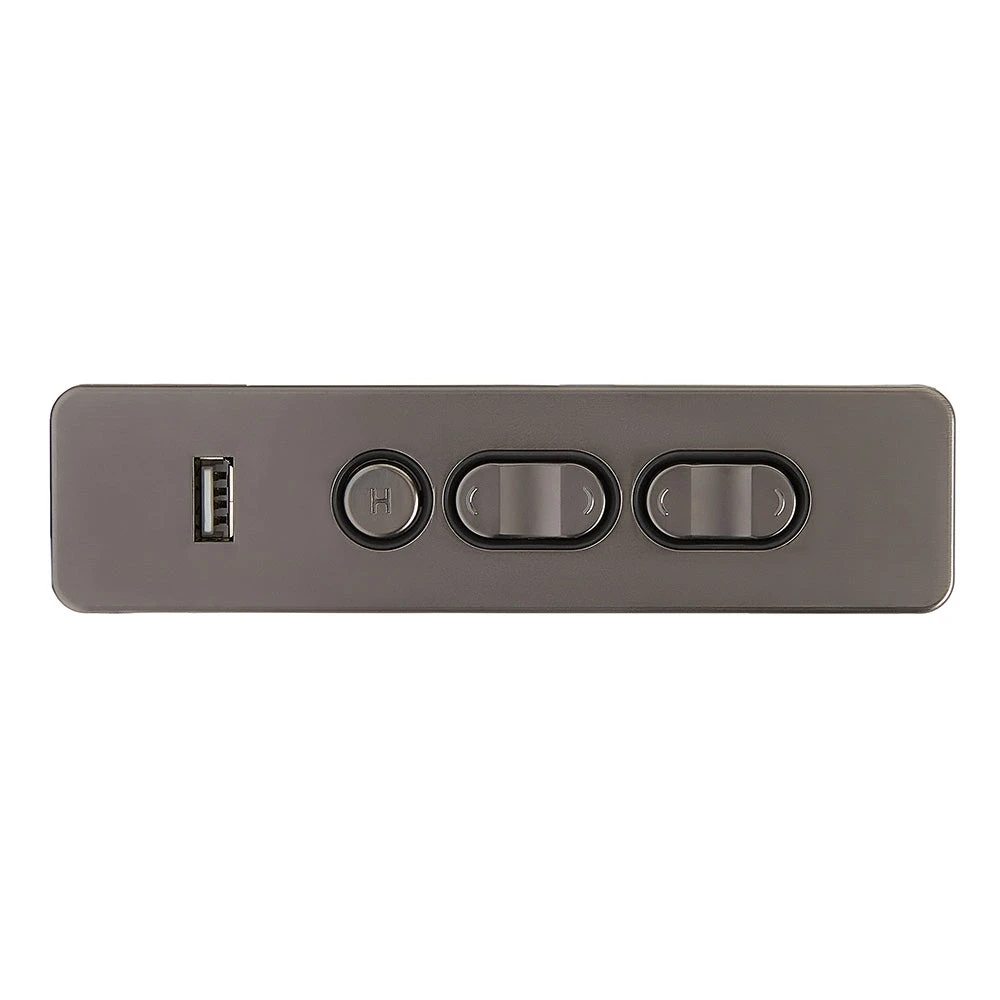

• This switch has 5 buttons suitable for controlling the up/down of 2 motors.
• With USB charging port, you can use it to charge your mobile devices

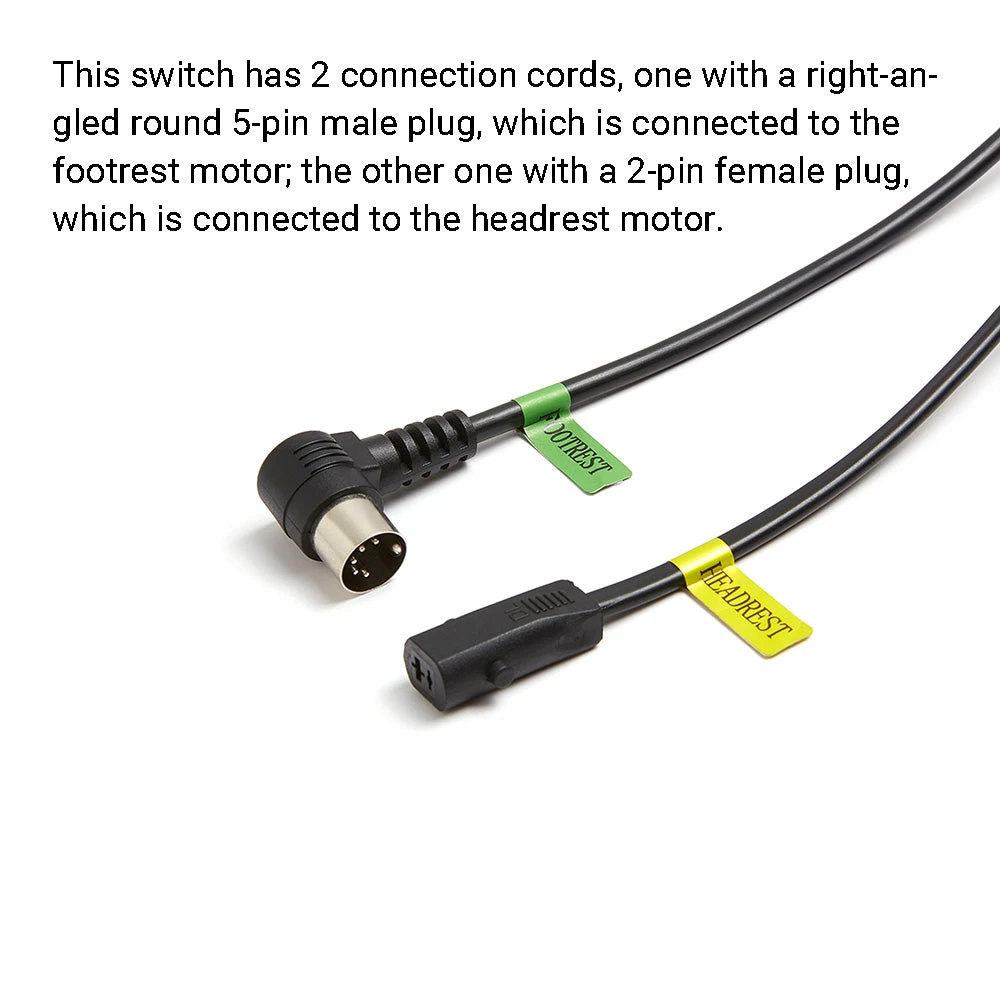

• This switch has 2 connection cords, one with a right-angled round 5-pin male plug, which is connected to the footrest motor; the other one with a 2-pin female plug, which is connected to the headrest motor.

Warning:

• The model number of this switch is WPS5C10W-005, and manufacturer number is 23300047X000, it can only replace the switch with the same model, if your switch’s model number is different, please do not buy it.
• The genuine WPS5C10W-005, has been discontinued, we now use the DL-SK-091-D2-01 to replace it. These two models have the exact same specification.

Note:

• The front cover plate of the switch is difficult to remove once it is locked. To facilitate your installation, the plate will be separated from the switch when shipping.
• When you are installing the switch, do not install the cover plate until everything is done.
• After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is large, and quick operation is more likely to cause damage to the switch.
