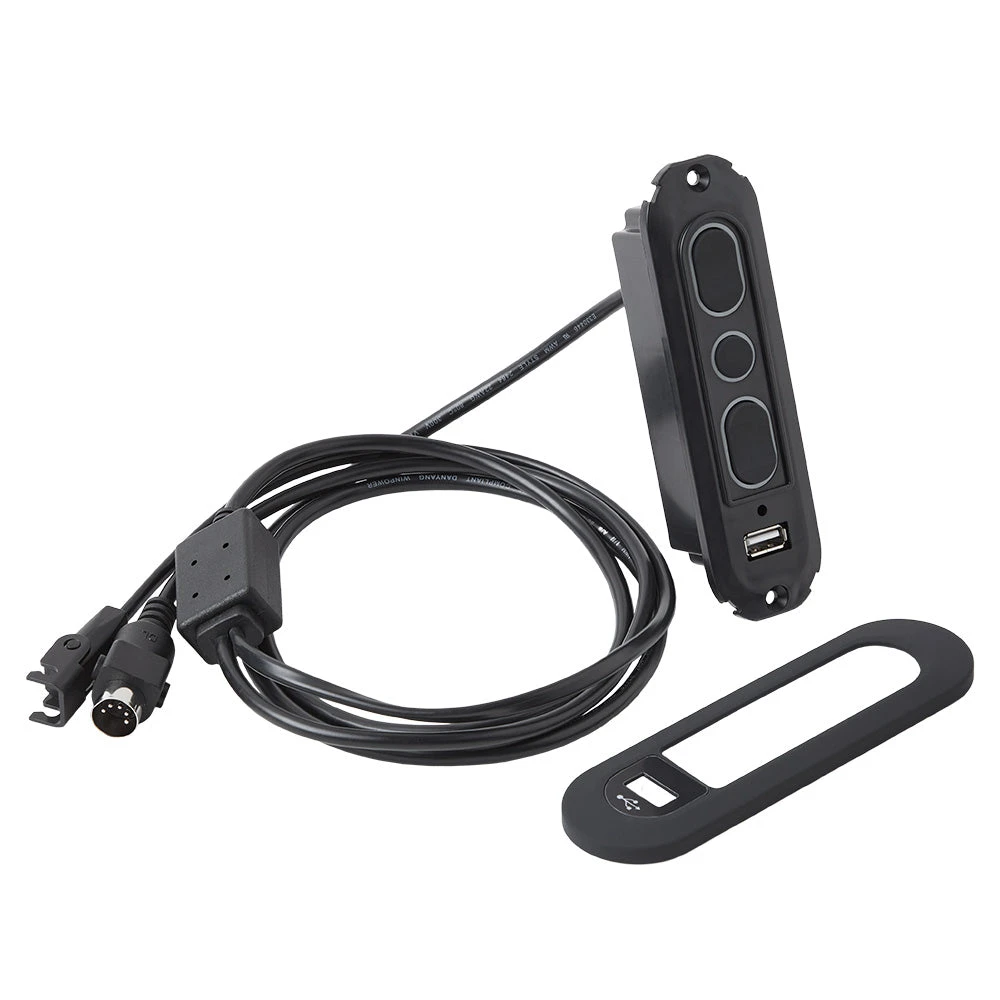

DL-SK-070-10 5 Button Switch For Power Recliner Or Lift Chair With USB

• Genuine DL-SK-070-10 switch: This is a genuine DL-SK-070-10 switch. If your current switch has the same model number, this product will be a perfect replacement.

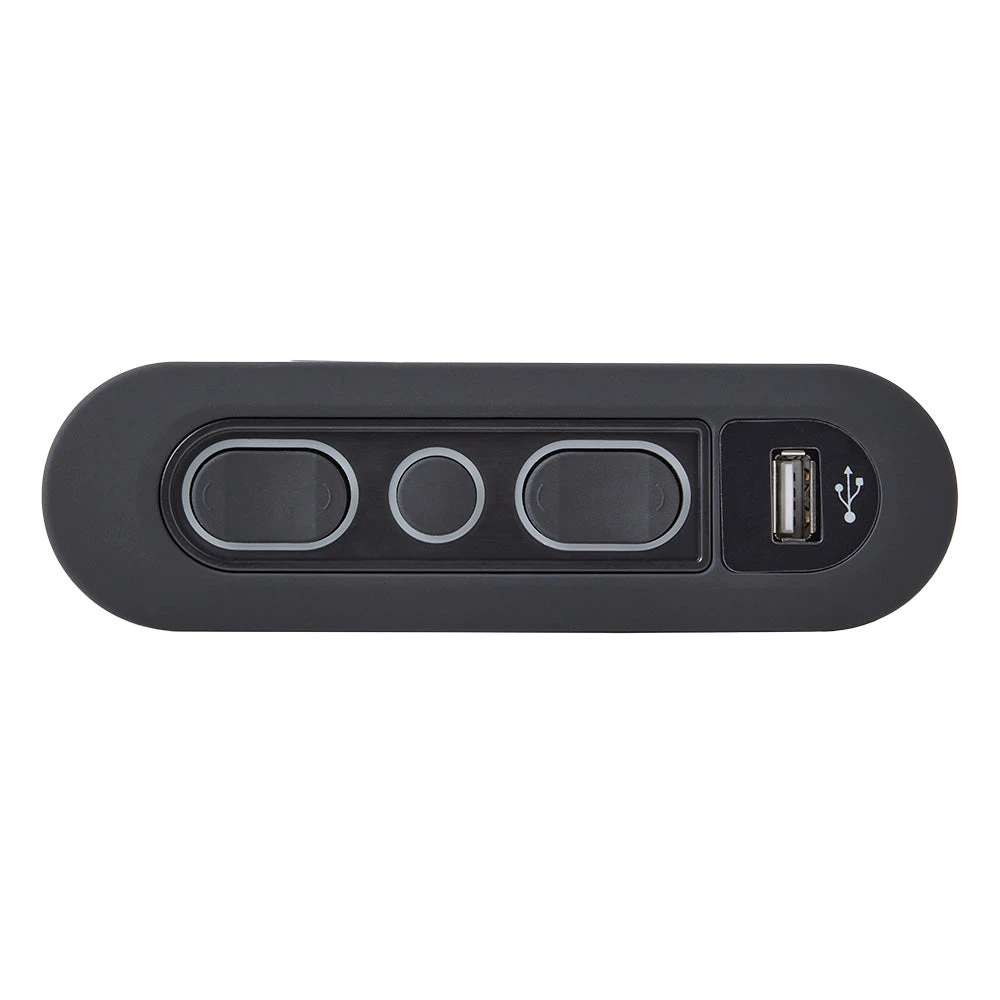

• 5 buttons: The switch has five buttons that control the up/down of the chair and backward/forward of the head cushion. And the round button in the center services as a reset/home button.
• This switch is suitable for power recliners/lift chairs that have two linear actuator motors.
• USB port: This switch is equipped with a USB charging port, which provides a 5V 2.1A output, you can use it to charge your mobile devices.

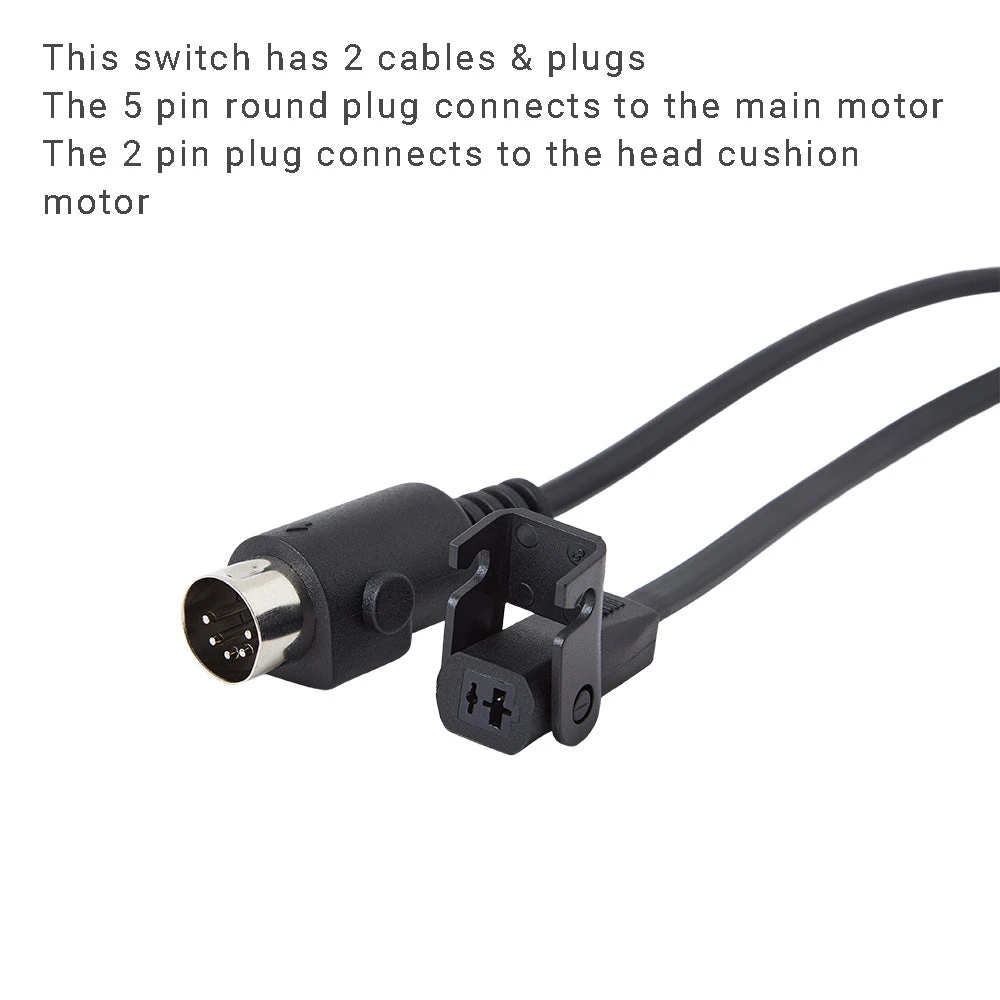

• 5+2 pin dual plug This switch has two cables and plugs. The round five pin plug connects to the main motor, the 2-pin plug connects to the deputy motor.

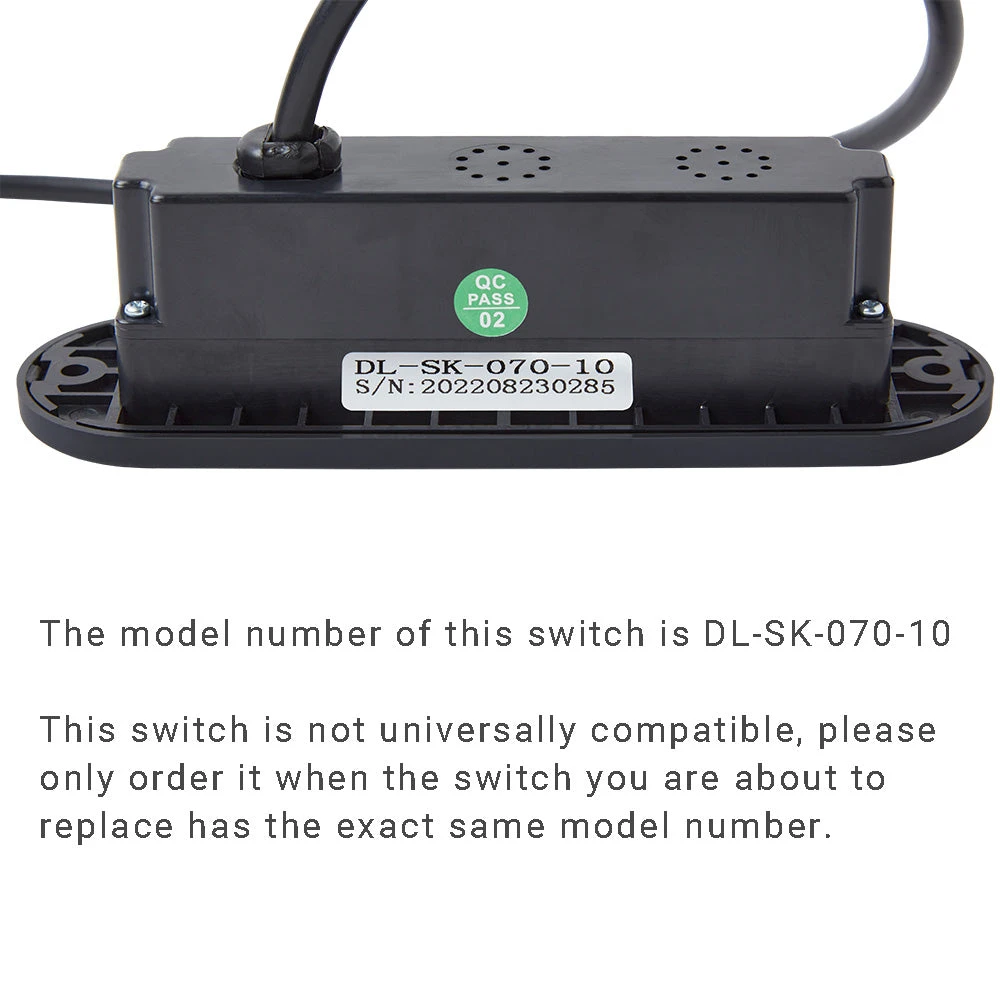

• This switch is not universally compatible. Please only order it when the switch you are about to replace has the exact same model number.
• We can provide other DL-SK switches and remote controls, if you need a different model, please feel free to contact us for a quotation.

Package includes:

• 1* switch
• 1* plastic cover

Notes:

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate the chair to the highest and lowest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
